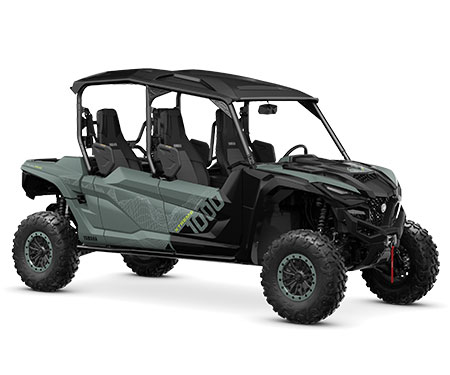

WOLVERINE RMAX4 1000 XT-R
Yamaha Wolverine RMAX4 1000 XT-R for Sale at Ultimate Yamaha Springwood in Springwood, QLD | Specifications and Review Information
Wolverine RMAX4 1000 XT-R features a long wheelbase and a lifted, aggressive stance providing class-leading ground clearance, class-leading suspension travel and an improved feeling of contact to the ground a big confidence booster when tackling steep, rocky or rutted terrain.
The platform affords a substantial increase in passenger space and storage capacity, ensuring plenty of room for four full size adults and gear.
With impressive terrain-handling comes smooth power from the 999cc engine and push-button D-mode control with three Drive positions - Sport, Trail and Crawl. Add XT-R paint, a factory-fitted WARN winch, colour-matched wheels, aggressive Maxxis Carnage tyres - and you begin to see the picture.
Powerful 999cc Parallel Twin Engine
The Wolverine RMAX 1000 XT-R delivers class-leading power and smooth performance, thanks to its powerful 999cc, DOHC, eight-valve, parallel twin engine with an aggressive 8,500 rpm redline and legendary Yamaha durability.
On-Command Four-Wheel Drive System
The On-Command® four-wheel drive system includes Turf Mode which unlocks the rear differential for a tighter turning radius and minimal turf damage, ideal for preserving your grass during household chores or any time you find yourself on delicate turf. The updated front differential also offers quicker locking engagement and disengagement.
Maximum Versatility
Available in two or four-seat options, the RMAX features a solid, durable frame, class-leading suspension, big tyres and an optimised wheelbase for a balanced contact-to-ground feel in extreme terrain. Both models are equally capable at work or play and boast Yamaha’s legendary durability.
Comfort-Focused Suspension
The Wolverine RMAX4 1000 XT-R features advanced heavy-duty suspension designed to provide maximum articulation at low speeds while maintaining strong chassis control and effective bump absorption during trail riding, and delivering maximum bottoming resistance at higher speeds. Wide-arc A-arms paired with FOX 2.0 QS3 shocks provide 360mm of suspension travel at the front and 430mm of travel at the rear, and the FOX 2.0 QS3 shocks can be switched without tools between three settings to improve comfort during relaxed driving, increase damping for normal trail riding, and maximise damping during sport driving.
Selectable Electric Power Steering
The Wolverine RMAX4 1000 XT-R's class-leading selectable EPS system that allows drivers to select between three different steering modes to match driving preference via a dash-mounted switch. HIGH mode offers more assistance, best for low-speed maneuvers and relaxed riding. STANDARD mode is a great balance of light steering and positive feedback for trail riding. And LOW mode provides less assist for greater feedback and a sportier feel that’s perfect for higher speed riding. There’s also a differential lock setting that offers maximum steering assist when the front differential lock is engaged.
Ready to work cargo bed
The Wolverine RMAX4 1000 XT-R features a tilting cargo bed to simplify hauling duties. Built with hydraulic assistance and a robust latch system, the bed transports up to 272kg with multiple steel tie-down points to secure cargo or attach accessories. Add in a full 907kg of towing capacity through a standard 2-inch receiver, and the Wolverine RMAX4 1000 XT-R is ready to get to work when you are.
Premium MTX Audio System
A premium MTX Audio System comes standard on the Wolverine RMAX4 1000 XT-R, providing exceptional audio quality, deeper bass and clearer vocals, along with three preset audio tunes. Recessed door speakers with smooth speaker grills improve passenger leg comfort.
Comfortable Secure Seats
Premium cut-and-sew comfort seats offer exceptional seating position for a planted feel and reduced fatigue, which is essential for occupants to enjoy the driving experience. The Wolverine RMAX4 1000 XT-R keeps occupants comfortable and secure with its wide bolstering, additional leg room for larger occupants and easy-to-adjust six-position seat belts for each seat.
Yamaha Adventure Pro System
Yamaha Adventure Pro System takes your journey to the next level with a seven-inch full-color display neatly integrated into the dash. This advanced adventure tool provides connectivity via Bluetooth or USB, and is loaded with features including navigation compatibility, phone and audio controls, GPS mapping and PIN-lockable geo-fencing, customisable home screen, drive-mode screen, and a rearview camera accessory option, all offering Yamaha owners added comfort, capability and confidence out on the trail.
Maximum Storage
Large storage optimised to provide protection from the elements, the Wolverine RMAX 1000 XT-R features a sealed 2.7L centre console, a 5.5L sealed glove box, and centre console cubbies. Both occupants can also quickly access their belongings with driver and passenger storage shelves containing secure rubber mats to keep items in place and two easy-to-reach cup holders.
Automotive-Inspired Cockpit
From charging your electronics with a powered USB port to seeing what's behind with the easily adjustable centre-mount mirror, ride in comfort and take on the terrain as long as you'd like.
Automotive-Style Soft Touchpoints
Featuring the best automotive-style driver and passenger soft touchpoints in its class, the Wolverine RMAX4 1000 XT-R provides a more relaxed experience even over rough terrain. The steering wheel and passenger handhold have the top shape and soft-touch in the market while providing a quality feel way beyond the competitors' hard plastic. Additional comfort points are strategically placed in locations where knees and arms frequently contact interior components.
Max Comfort for Driver and Passengers
Driver and passenger comfort features include a tilt steering wheel with 17 degrees of adjustment, and an adjustable passenger handhold with a robust design that won't get clogged with mud or dirt. Furthering driver comfort, the throttle and brake pedals have been optimised for comfort, while a strategically-designed brake master cylinder cover helps keep the mud and water off the driver's feet.
Proven Transmission
The Proven Off-Road technology of Yamaha’s Ultramatic® system is unmatched in the industry. The CVT system utilises a centrifugal wet clutch purpose-built to withstand the power from the 999cc engine, and a constant tension belt system for tackling obstacles in high rev range without fear of damaging the belt. When more torque is needed, the low gear is perfect for challenging conditions. The robust CVT system means less time switching gears and more fun taking on any terrain.
Premium Front Bumper
A multi-piece front bumper gives the Wolverine RMAX 1000 XT-R a stylish look. With two welded steel trailering tie-down points, factory-installed WARN VRX 4500lb winch, accessory brush guard, and accessory pod light-mounting brackets, you'll confidently be able to take on the toughest terrain
Excellent Braking System
Advanced braking system offers exceptional power, feel and quiet operation for added confidence when attacking the trail. Adding to the package, the one-way sprag clutch offers natural and predictable all-wheel engine braking at all speeds, maximising traction, boosting confidence on hill descents and reducing wear on the vehicle's brake system.
Advanced LED Lights
Stealthy, advanced LED headlights with lo and hi beam provide wide coverage for confidence-inspiring night time driving. LED marker lights showcase the XT-R's unique, sleek style while integrated LED taillight, brake light and reverse light keep you visible on the trail and enhance visibility when reversing.
Legendary Durability
Yamaha's proven durability is highlighted by the durable surface treatments and carbon steel construction of the front differential and rear gear case. It is can also be seen in the large 62mm front and 72mm rear DAC (Double Angular Contact) wheel bearings, forged sway bar links, wide pitch A-arms and single stamped A-arms, and large vehicle-specific ball joints.
Built Real World Tough
Like all of Yamaha's Side-by-Sides, the Wolverine RMAX 1000 XT-R is assembled with pride in the USA at Yamaha's state-of-the-art factory in Newnan, Georgia. This is one of the reasons that Yamaha Motor Australia specifies a three year factory warranty on RMAX and all other four-wheeled utility vehicles.
Technical Specifications
Engine
| Engine Type | Liquid-cooled, 4-stroke, DOHC, parallel twin |
|---|---|
| Displacement (cc) | 999.0 |
| Bore x Stroke (mm) | 93.0 x 73.5 |
| Compression Ratio | 11.2 : 1 |
| Lubrication System | Dry sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric |
| Fuel Tank Capacity (L) | 34.8 |
| Final Transmission | On-Command 4-way locking differential; Turf Mode; 2WD, 4WD, full diff-lock 4WD |
| Transmission | Ultramatic® V-belt with all engine braking; L, H, N, R |
Chassis
| Frame Type | Steel tube |
|---|---|
| Suspension Front | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel |
| Suspension Rear | Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 430mm travel |
| Brakes Front | Hydraulic dual discs |
| Brakes Rear | Hydraulic dual discs |
| Tyres Front | 30 x 10.00R-14 Maxxis Carnivore |
| Tyres Rear | 30 x 10.00R-14 Maxxis Carnivore |
Dimensions
| Length (mm) | 3830 |
|---|---|
| Width (mm) | 1694 |
| Height (mm) | 2100 |
| Wheelbase (mm) | 3000 |
| Ground Clearance (mm) | 350 |
| Wet Weight (kg) | 1050 |
