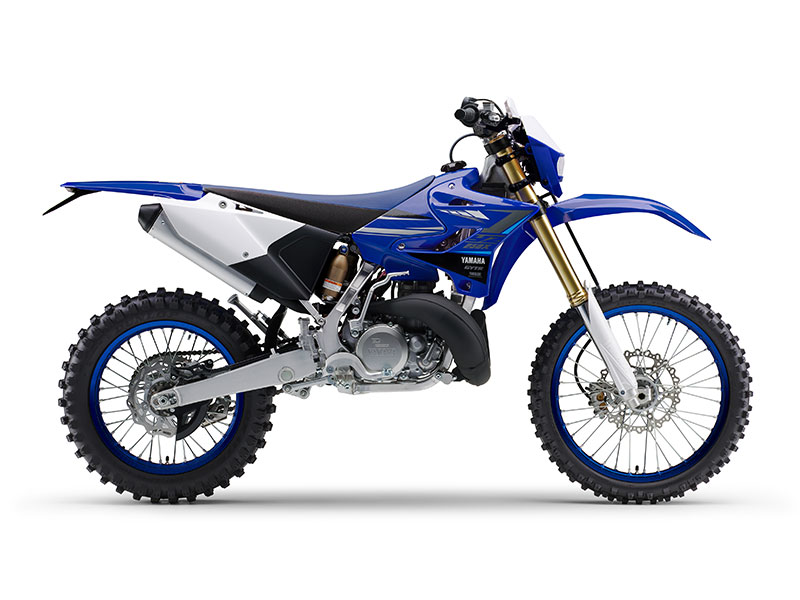

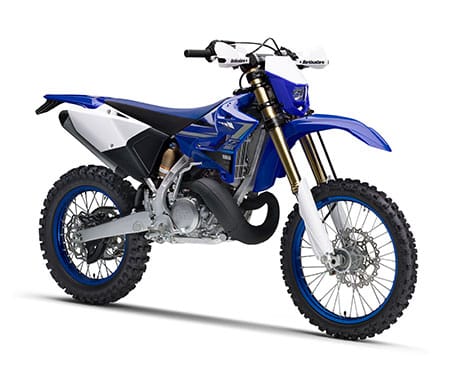

YZ250X

yamaha-yz250x
Yamaha YZ250X for Sale at Ultimate Yamaha Springwood in Springwood, QLD | Specifications and Review Information

Yamaha YZ250X for Sale at Ultimate Yamaha Springwood in Springwood, QLD | Specifications and Review Information

Two-stroke version of YZ250FX gives an instant hit of two-stroke power in a lightweight enduro specific package.

Riders who like the easy maintenance, sharp handling and incredible power delivery of the YZ250 can now access this in the bush. A revised engine and a wide ratio gearbox have harnessed the power while an 18in rear wheel with off-road tyres, a side stand and reserve fuel tap add the creature comforts. We've even slimmed down the expansion chamber to avoid clipping trail obstacles. And that class-leading KYB twin chamber suspension is specially tuned for enduro riding.

Also available with optional recreational rego lighting kit (R model).

2 Stroke Power Tuned for Off Road

2 Stroke Power Tuned for Off Road


Legendary YZ250 249cc liquid-cooled reed-valve-inducted two-stroke engine, a new compression ratio, new exhaust port timing, updated CDI unit - all focused on making a wide, controllable power character ideal for off road racing.

Compact Exhaust

Compact Exhaust


New exhaust expansion chamber is designed especially for the new YZ250X, and is narrower both horizontally and vertically for clearance on tight, technical trails, while still providing excellent exhaust efficiency.

Wide-Ratio Gearing

Wide-Ratio Gearing


Smooth-shifting, five-speed, wide-ratio transmission ensures proper gearing from tight woods sections to wide-open fire roads.

Industry-Leading KYB Fork

Industry-Leading KYB Fork


Industry-leading, fully adjustable KYB spring-type fork with speed sensitive damping uses piston speed to control damping force for super-precise handling and a smooth ride, with minimal wasted stroke or abrupt shocks for the rider - all tuned for the demands of off-road racing.

Proven Braking Performance

Proven Braking Performance


YZ250F-style front brake caliper with 250mm wave-style front and 245mm wave-style rear discs minimise unsprung weight and provide excellent stopping power.

YZ250 Based Frame

YZ250 Based Frame


A carefully engineered, advanced aluminium frame and swingarm give the YZ250X the famous handling proven by the championship-winning YZ250 motocross machine on tracks around the world. Tips the scales at just 104kg with all fluids - which makes it lighter than a four-stroke.

Cross-Country Features

Cross-Country Features


Off-road focused tyres with an 18in rear wheel, wide-ratio gearing, a standard side stand, sealed O-ring chain and a reserve fuel petcock. An optional lighting kit is available that assists in recreational rego in applicable states.

Enduro-Specific Wheels and Tyres

Enduro-Specific Wheels and Tyres


Cross-country-spec Dunlop Geomax AT81 tyres front and rear are ready to head straight to the races. An 18-inch rear tyre has a taller sidewall to improve comfort and reduce pinch flats.

Enduro Ergonomics

Enduro Ergonomics


A racy 'gripper' type seat and narrow fuel tank combine with a tapered aluminium handlebar and adjustable mounts to create greater freedom of movement and more comfortable ergonomics for riders.

Technical Specifications

Engine



Engine Type Liquid-cooled, 2-stroke, reed valve induction
Displacement (cc) 249.0
Bore x Stroke (mm) 66.4 x 72.0
Compression Ratio 7.9 - 9.4 : 1
Lubrication System Premix
Fuel Management PWK38S Keihin
Ignition CDI
Starter System Kick
Fuel Tank Capacity (L) 8.0
Final Transmission Chain
Transmission Constant mesh 5-speed



Chassis



Frame Type Aluminium control filled semi double cradle
Suspension Front Telescopic forks, 300 mm travel
Suspension Rear Swingarm (link suspension), 315mm travel
Brakes Front Hydraulic single disc, 270 mm
Brakes Rear Hydraulic single disc, 245 mm
Tyres Front 90/90-21 (54M) Tube type
Tyres Rear 110/100-18 (64M) Tube type



Dimensions



Length (mm) 2180
Width (mm) 825
Height (mm) 1285
Seat Height (mm) 970
Wheelbase (mm) 1480
Ground Clearance (mm) 355
Wet Weight (kg) 104
